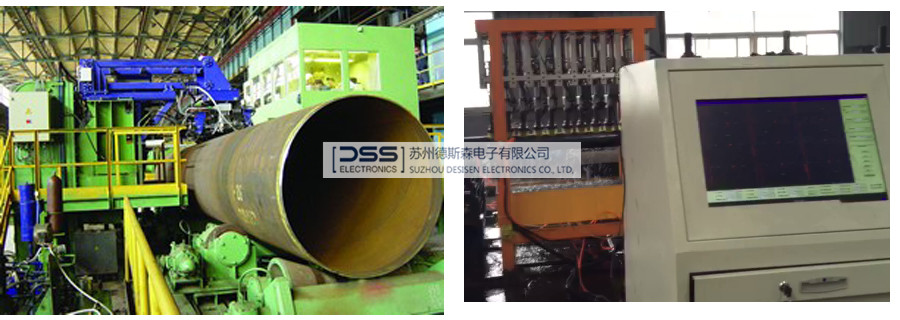

① It adopts rotation probe or water bag array testing ways,according to different specifications of workpiece to choose the most suitable testing ways。

② It can realize longitudinal and horizontal and hierarchy and other flaw detection on all tube,simultaneously equip with thickness measurement。

③ It can realize ultrasonic vortex integration testing ,so it makes sure the quality of testing

④ It will alarm automatically and mark when meet flaws

1、The number of channel:24  customized

2、Gain amount：90dB，stepping is 0.1dB

3、Working style: single probe emission,receiving or double probes emission or receiving respectively

4、surplus sensitivity ：≥90dB

5、Resolution ：≥26dB

6、Dynamic rang：≥30dB

7、Scanned rang：0～5000mm

8、Frequency rang：0.5～15MHz

9、Repetition frequency：500Hz～15KHz  changeable

10、Vertical linearity：≤5%

11、Horizontal linearity ：≤1%

12、Strobe setting :every channel equipped with three strobe,they are alarm strobe, tracking strobe,and self-locking strobe

13、Lasting time alarm: delayed time 0.5～10s，stepping is 0.1s

14、Flaw detection and waveform saving :the number is unlimited,it can be used for waveform playback ,waveform communication,waveform printing。

working temperature ：-15~55℃

saving temperature：-20~60℃

relative humidity :not exceed 85%

working voltage :AC380±15V
