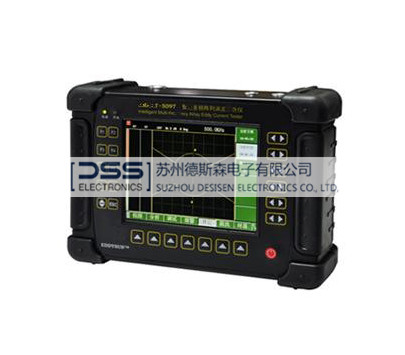

Five independent optional frequency, frequency scope：1Hz~6MHz three real time mixing unit ,multiple displaying modes are optional (eight tracking impedance plan /sixteen ribbon type curve/ three dimensional C scanning eddy imagining )；at the same time doing differential and absolute type eddy current detecting。 Flaw detection and thickness measuring can be done at one time；equipped with all functions 、the features of instrument 、and applicable scopes of DMD-556Win

1、Frequency scope ：1Hz ~ 6MHz（far field frequency 5Hz～5KHz）

2、Gain：0～90dB，stepping is  0.5dB

3、Gain /phase measurement :manual /automatic

4、Phase position rotation：：0~360° stepping  1 °

5、Ten  independent detecting channel

6、Twelve hardware alarm output connector

7、Quickly analog /digital type electronic balance

8、Automatic/manual amplitude and phase measurement

9、Unique non-amplitude /amplitude alarm

10、Having multifrequency  detecting analysis function

11、Probe excitation amplitude,can be adjusted by keyboard

12、Saving mass independent detecting procedure and detecting data

13、Four impedance plane diagram and six ribbon type time base scanning curve display

14、Extending C scanning displayed

15、Background solution of rectangular coordinate system  and Polar coordinate system

16、It can connect two kinds of probes simultaneously to realize flaw detection and thickness measuring completed simultaneously or respectively 。 One machine can be used as two kinds of machines

17、Industrial personal computer or laptop is optional， host and laptop takes USB2.0 high speed communication link mode

18、Equipped with far field detecting function

19、Not only a set of complete far field eddy detecting system but also advanced property of conventional multifrequency 、multichannels eddy detectors

20、Displayed modes:spot /line /blanking

21、High pass filtering ：0~500 Hz

22、Low pass filtering ：10-10000Hz

23、Digital filtering point：1-100

Working temperature ：-15~55℃

Saving temperature ：-20~60℃

Relative humidity ：not exceed 85%

Working voltage：AC220±10V/DC12V
