• Full Chinese touch keyboard, intuitive and easy to remember, with complete Chinese prompts and graphic display throughout operation. Simple training enables proficient operation.

• Automatic performance testing of instrument and probe, automated instrument calibration, capable of measuring thickness and material sound velocity.

• Ten independent flaw detection channels (electronic switching).

• Custom flaw detection procedures can be generated according to actual workpieces (such as welds, forgings, castings, pipes, plates, axles, wheels, small diameter pipes, etc.). Field flaw detection requires no test blocks.

• DAC, AVG, and decibel DAC curves automatically generated, unlimited sampling points, compensation and correction available, curves automatically float with gain and automatically extend with sound path.

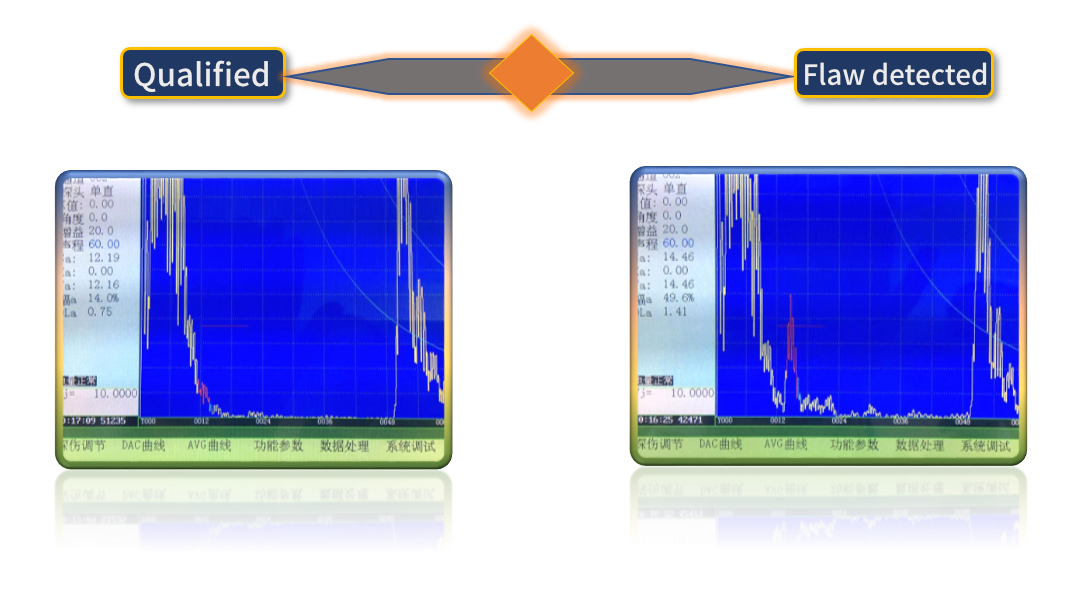

• Real-time display of defect echo (horizontal, vertical, distance, dB equivalent value), weld cross-section display.

• Entry gate, loss gate, DAC sound alarm, gate position, gate width and gate height are freely adjustable.

• Peak memory and envelope function, making it easier to find higher waveforms.

• 500 flaw detection data instrument storage.

• New low-reflection 5.5" EL flat display screen (color TFT display), strong electromagnetic interference resistance, high contrast, high resolution.

• Low voltage sound alarm, automatic shutdown protection.

• Lightweight (only 1.6Kg with battery), compact size (dimensions 260×140×55mm), easy to use and carry.

• Imported NiMH battery, automatic protection charging (18VDC, 220VAC), continuous operation for more than 6 hours.

• Operating temperature range: -20℃~50℃ normal operation.

Gain margin：110dB

Frequency bandwidth：0.4~20.0MHz

Detection range：0~6000.0mm

Surplus sensitivity：>56dB （depth 200mmΦ2flat-bottom hole）

Resolution ratio：>40dB

Dynamic range：>32dB

Horizontal linearity：<0.1%

Vertical linearity：<3%

Noise level：<10%

Operating mode：single probe, double crystal probe, penetrating probe

Pulse generator：variable pulse generator

Damping：50/100/400Ωautomatch

Attenuator accuracy: ＜ ±1dB/12dB

Digital inhibition：（0 ～ 80）%, no affecting of linear and gain

Gate: advancing wave door, wave loss door; single gate read, double-gate read

Alarm: buzzing alarm, LED alarm

Environment temperature：(-10~50)℃

Relative humidity：(20~95)%RH

Specification：HY350/360

Operating temperature: -10 ~ 50℃

Storage temperature: -20℃ ~ +60℃

Relative humidity:less than 85%

Working voltage: DC24V
