Piston liner surface crack and sand hole detecting system

Detecting targets :piston liner includs inner and outter wall surface crack and sand hole

Bushing diameter :17-95mm, inner diameter 15-70mm,height 18-55mm

Detecting host :desisen FET-99S multiple channels intelligent digital vortex detector

System detecting flow:inner and outter wall have two detecting stations,every station is divided into three areas,subarea detecting :according to needs ,we can shield angle,just shield gap,not the whole circumference where the gap is ;semi automatically supply material ,automatically detect,automatically sorting

Detecting speed :8-13 seconds per piece

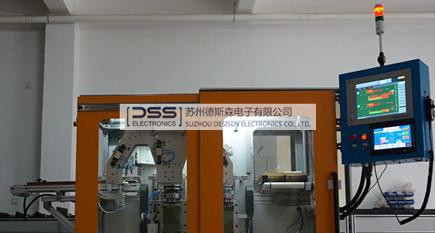

Piston liner surface crack and sand hole detecting system

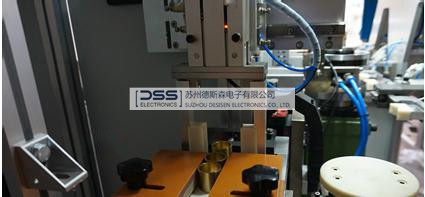

Piston liner surface crack and sand hole detecting system,supplying material

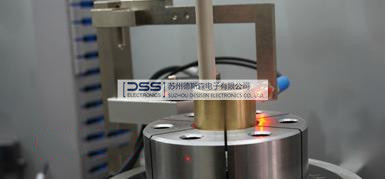

Piston liner surface crack and sand hole detecting system,inner wall detection
