Inner and external diameter surface crack detecting system of hollow shaft

Detecting host :FET-99S double channels vortex detector

Crack specification : longitudinal length 6.350mm* width 0.100mm* depth 0.250mm

Detecting targets :inner and external diameter surfacedefect of hollow shaft ,the range of workpiece diameter :50-600mm.length is 500-10000mm

Detecting cycle :33-48 seconds per piece (according to type of workpiece)

System detecting flow :mechanical hand supplies material,according to type of workpiece to automatically use relevant setting。workpiece is rotating for crack detection

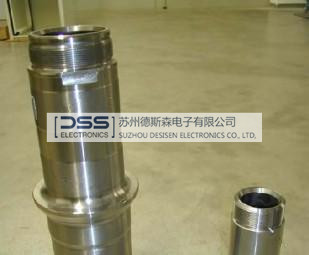

Hollow shaft

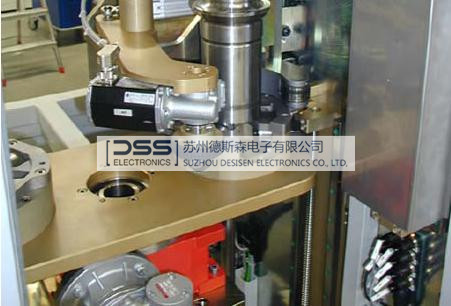

Detection on lower part of hollow shaft

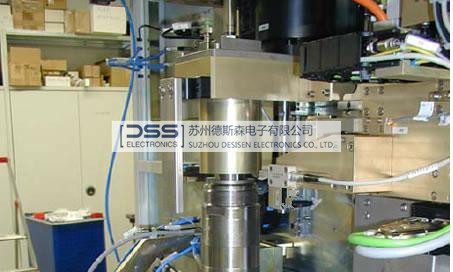

Detection on upper part of hollow shaft
