1、copper rods、steel rods、stainless steel rods and metal rods and so on production line online offline nondestructive flaw detection
2、Oil casing sucker rod、hollow shaft and so on nondestructive flaw detection
3、Condenser tube、air conditioner pipe、automotive tubing
4、Suitable for nondestructive flaw detectionon every kind of metal rods 、wire rod

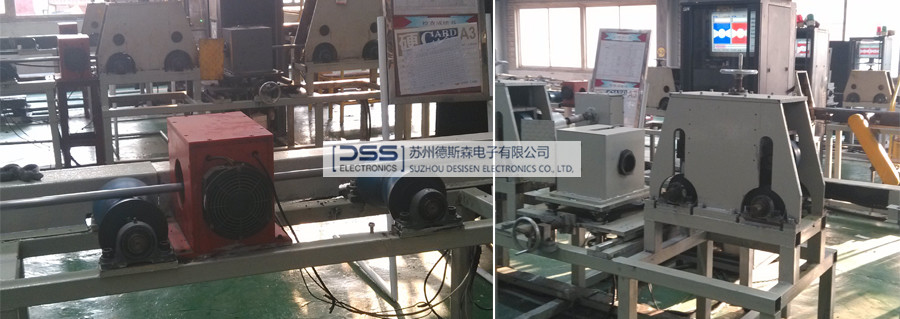

scene pictures

real time display eddy change two dimensional diagram of detecting target and scanning curve。 All operations are adopt menu type man-computer dialogue,keyboard controls。
● 中国(China):GB/T 14480--93 , GB/T 7735--95
GB/T 5248--98 , GB/T 5126--2001
GB/T 12969.2 , GB/T 11260--96
● 日本(Japanese ): JISH 0502
● 美国(America): ASTM-E 243--97
● 德国(Germany): DIN 54141
1、The range of frequency:100Hz-12MHz set arbitrary ,suitable for every kind of metal material
2、Gain :0-70db,stepping is 0.1db
3、Phase position:0-360 °、stepping is 1°
4、Two independent optional frequency
5、Four kinds of different styles mode setting
6、Automatic phase position 、amplitude analysis function
7、Automatic zero calibration:setting zero calibration interval time is available
8、Three kinds of different styles of alarm regional setting
9、The function of Removal heard-end signal
10、Automatically clear screen /track impedance display,set interval time and cancel interval time are available
11、Automatic alarm delayed system,delayed time can be set wilfully
12、Automatic marking delayed system,delayed time can be set wilfully
13、Equipped with the functions of detecting signal playback、double direction access、CD copy and save
14、Perfect document processing function,and it can produce every kind of standard parameters
15、Quickly analog/digital type electronic automatic balance as well as dynamic track filtering
16、WINDOWS operating interface is simple intelligent and easy to operate
17、Suitable for every kind of probe:such as rotation type
18、Apply to metal tubes、rods manufacturer online quality detection
working temperature:-15~55℃
saving temperature :-15~55℃
relative humidity:not exceed 85%
working voltage :AC220±10V
