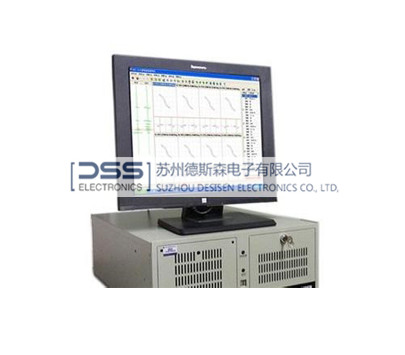

DMD-24 high speed eddy current flaw detector
- Introduction
- Function
- Parameter
- Work environment
Suitable for online high speed detection or offline automatic detection of metal rods (welded pipes、seamless pipes、ferromagnetic pipe、nonferromagnetic pipes)
Suitable for eddy current flaw detection of metal rods、wire material 。
DMD-24 high speed eddy current detector combines digital eddy current technique、microprocessor technology and so on cutting edge technology on itself,its detecting speed is up to 6meters per second,the instrument is reliable、stable、sensitive。DMD-24 high speed eddy current detector has high degree of sensitivity on metal pipe，rods，wire，such as surface flaw、concealed joint，air hole，and opening cracks
DMD-24 high speed eddy current detector Adopts computer Chinese menu type man -machine dialogue，displayed on the big screen，multi-mode alarm technique and specially designed digital electronic balance technique and intelligent dynamic filtering technique。Make it easier for operator to operate。DMD-24 high speed eddy current detector possesses testing bandwidth of 65Hz～4MHz,suitable for many kinds of detecting requirements of different metal material , and due to full digital design，it doesn’t need readjust instrument when change the specification of products, finally realize very easy to operate。
DMD-24 high speed eddy current detector can connect a crossing coil which has low requirements, or connect a combined probe which has small size . The solution of probe can according to detecting requirements of users。Detecting system can equip with high accuracy delayed marking mode、testing equipment 、marking machine and changeable probe frame so as to realize online automatic detection of eddy current。The system has functions of synchronous alarm output controlled by inside and external clock control
scene pictures
-
