Bearing races (inner coil and external coil)surface crack and burn detection system

Testing targets : bearing inner external coil、inner external surface and up and down transverse plane surface crack as well as burn

Outer ring (OR): the biggest OD 180*45mm,the smallest  OD72*23 mm

Inner ring (IR) :the biggest OD133*60mm,the smallest  OD53*27mm

Testing host :desisen FET-99S multiple channels intelligent digital vortex flaw detector

System testing process:connect to automatic line，automatically test,automatically sorting

Testing speed :every line is smaller than 30 seconds per piece

System testing process:probe scanning and positioning adopt absolute value bus servo control ,conventient to debug,probe has high security ,testing line is durable and solid,suitable for production line 24 hours detection。the flaw detection of inner diameter and external diameter is completed on the same testing platform,the workpiece don't have to be turn-over 。

Bearing races (inner coil and external coil)surface crack and burn detection system

Bearing races (inner coil and external coil)surface crack and burn detection system ,supplying material

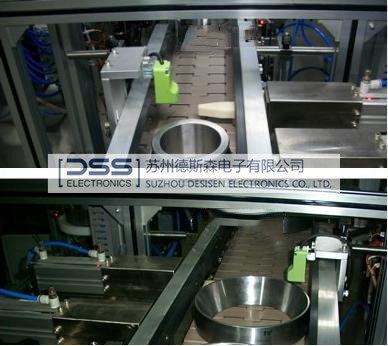

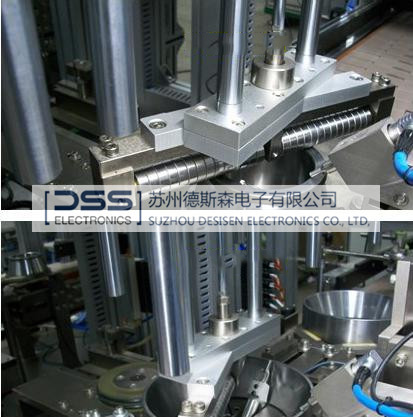

Bearing races (inner coil and external coil)surface crack and burn detection system,detecting platform
