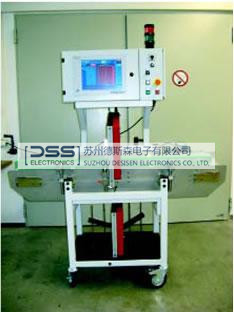

Casting and forging mixed material detector

Testing host :NDT-ED-O intelligent digital vortex flaw detector

Testing targets :big type,heavy workpiece (the biggest is 800mm length* 300mm width*300mm height ,the heaviest is 25kg )

Testing features :dynamic test

Instrument testing process :operating staff manually send workpiece to conveyor,the conveyor  moving at a constant speed ,when arrive at coil position ,it will automatically trigger detection。adopting multiple frequency to test,according to testing result,the qualified workpiece will enter qualified area,when detecting the unqualified workpiece ,the conveyor will stop so as to be convenient for operator to take out unqualified workpiece。the automatic sorting machine is available.

Casting and forging:
